What is the difference between nominal and actual dimensions

What is the difference between nominal and actual dimensions

Categories: Installation and Maintenance

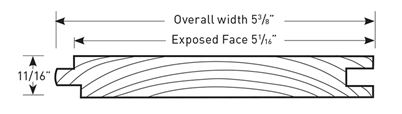

Tongue and groove siding actual nominal dimensions 1x6

This diagram is showing the actual dimensions for this 1x6 tongue and groove board.

Anyone who has ever gone shopping for lumber, whether it’s for construction or a small project, has encountered this issue: A piece of lumber may have a stated size such as 2x4 or 1x6, but when the lumber is measured, the size is a bit smaller than stated. A 1x4 measures 3/4 inch thick by 3 1/2 inches wide and a 2x4 measures 1 1/2 inch thick by 3 1/2 inches wide. Why isn’t that actual size listed on the lumber? There is a simple explanation for this. Lumber suppliers have traditionally used nominal dimensions.

Nominal Dimensions

Nominal measurements traditionally refer to the size of the board when it was first rough cut, before it was dried and planed (smoothed). This is the measurement of the green board before any shrinkage has occurred.

Actual Dimensions

Actual measurements are the actual final size of the lumber after it has been dried and planed. Boards will shrink width-wise versus length-wise because of the direction of the grain. This is because wood is anistrophic, meaning that the wood's properties will change depending on the grain direction. It is also important to note that if the final product has been planed on all four sides, it will be denoted as S4S. If only two sides are planed, it is denoted as S2S.

Common Lumber Dimensions

 Nominal Size  Actual Size
1x2 3/4" x 1-1/2"
1x3 3/4" x 2-1/2"
1x4  3/4" x 3-1/2"
1x6  3/4" x 5-1/2"
1x8  3/4" x 7-1/4"
1x10  3/4" x 9-1/4"
1x12  3/4" x 11-1/4"
2x2  1-1/2" x 1-1/2"
2x3  1-1/2" x 2-1/2"
2x4  1-1/2" x 3-1/2"
2x6  1-1/2" x 5-1/2"
2x8  1-1/2" x 7-1/4"
2x10  1-1/2" x 9-1/4"
2x12 1-1/2" x 11-1/4"
4x4  3-1/2" x 3-1/2"
4x6  3-1/2" x 5-1/2"
6x6  5-1/2" x 5-1/2"
